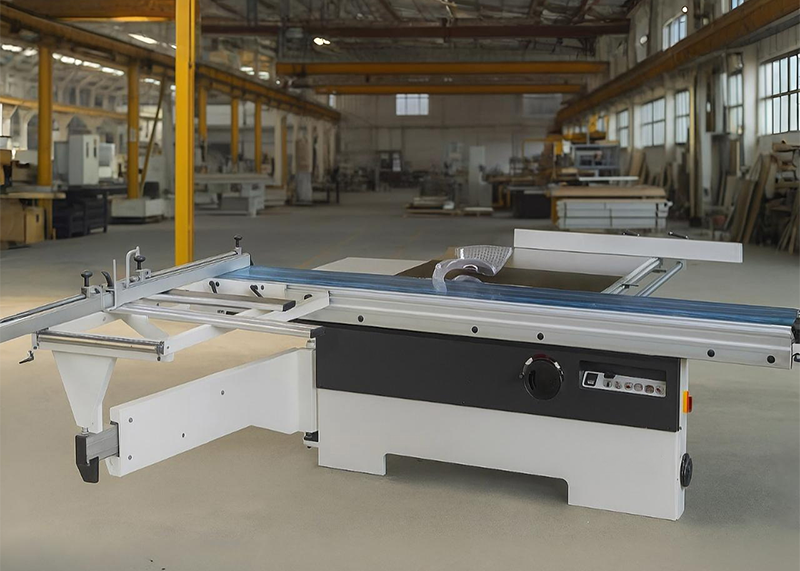

Panel Saw
| Model No. | MPS 3200 | MPS 3200H |
|---|---|---|
| Sliding Table Length | 3200 X 375 mm | 3200 X 415 mm |
| Main Saw Diameter | 300x30 mm | 400x30 mm |
| Main Saw Blade Speed | 4000/6000/min | 4000/6000/min |
| Tilting of Saw Blade | 90°-45° | 90°-45° |
| Max. Cutting Depth at 90° | 100mm | 125 mm |
| Max. Cutting Depth at 45° | 70 mm | 85 mm |
| Motor For Main Saw Blade | 7.5 HP (5.5 kw) | 7.5 HP (5.5 kw) |
| Max. Diameter of Scoring Blade | 120x20 mm | 120x22 mm |
| Scoring Saw Speed | 8000/Min | 8000/Min |
| Max. Depth of Cutting of Scoring Blade | 5 mm | 5 mm |
| Motor For Scoring Blade | 1 HP (0.75 kw) | 1 HP (0.75 kw) |
