Metal Door Press Machine

Home

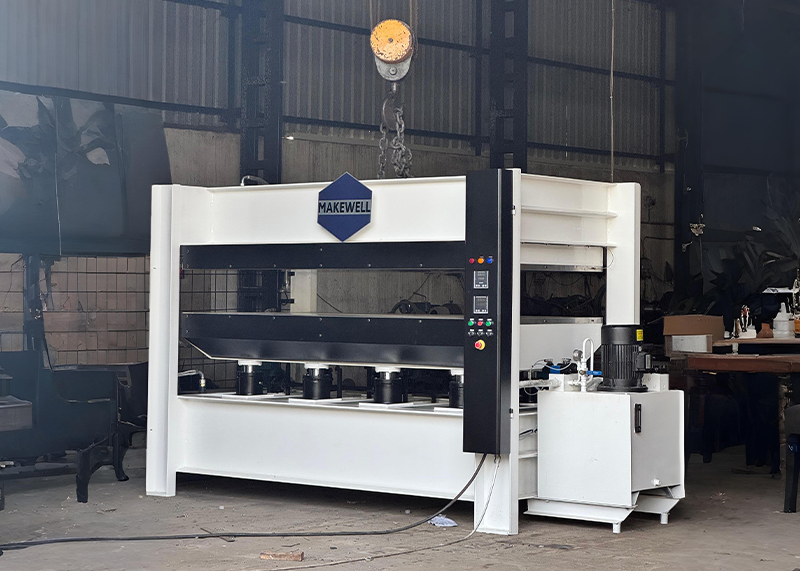

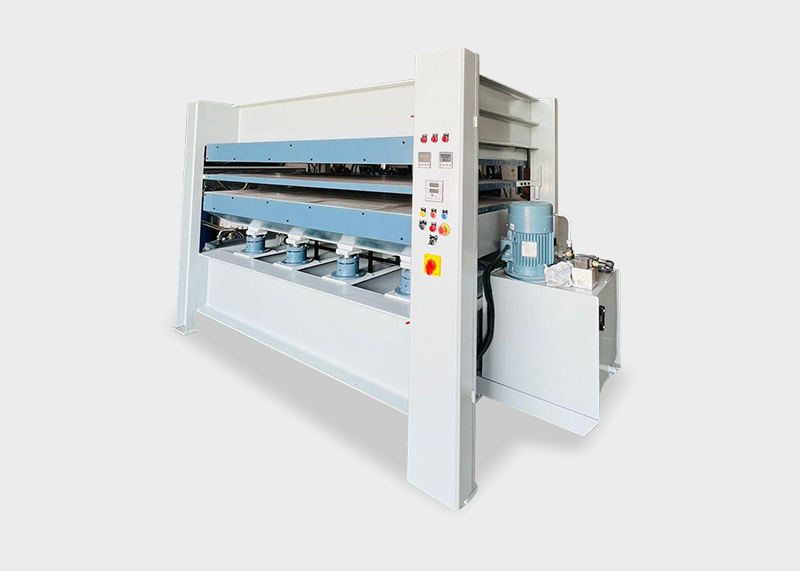

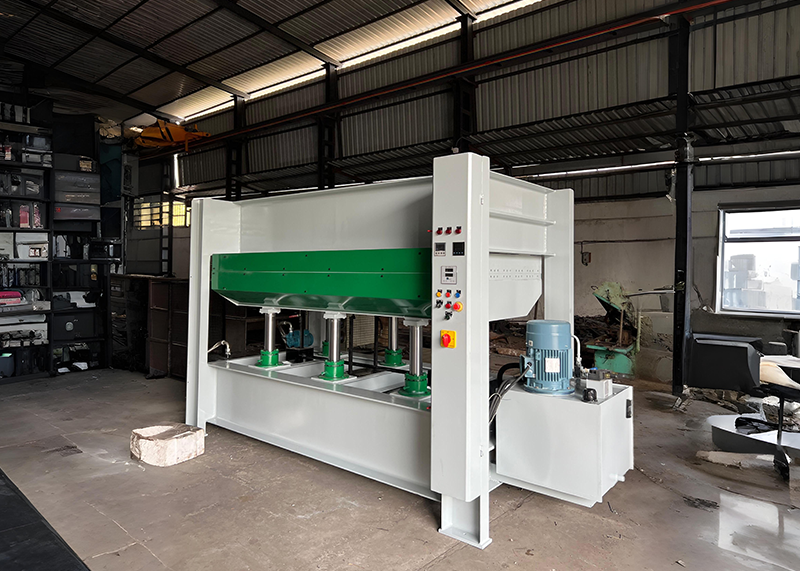

Metal Door Press Machine

At Makewell Industries, we specialize in delivering industrial-grade machinery engineered for performance, durability, and efficiency. Our Metal Door Press Machine is purpose-built for manufacturers requiring fast, consistent, and high-pressure metal forming—especially for MS and steel door panels.
Backed by advanced hydraulic systems and a rugged design, this fully automatic press is optimized for high-output environments, ensuring seamless operation, energy savings, and low maintenance needs. It's the perfect fit for metal fabrication units that demand precision and speed without compromise.

Make an Inquiry
Download
Key Features
  • High-Capacity Performance:100 Ton pressing power for superior metal door forming.
  • Fully Automatic Operation: Increases productivity with minimal manual intervention.
  • Durable Construction: Made from heavy-duty MS frame for long-term reliability.
  • Energy-Efficient Motor: 7.5HP motor ensures smooth operation with optimized power usage.
  • Precision Engineering: Accurate platen and cylinder alignment for consistent results.
  • Advanced Hydraulic System: Provides smooth, stable, and high-pressure operation.
  • Fast Cycle Time: 15-second press cycle to maximize throughput.
  • Large Working Area: 1300 x 2500 mm platen accommodates various door sizes.
  • Safety Integrated Design: Comes with necessary interlocks and protective systems.
  • Low Maintenance: Engineered for easy servicing and low downtime.
Specifications

Specification

Details
Capacity 100 Ton
Automation Grade Fully Automatic
Power Source 3 Phase Electric Supply
Material Mild Steel (MS)
Operating Voltage 214 V
Hydraulic Pressure 120 Kgs/cm²
Machine Weight 11 Ton
Platen Size (L x W x T) 1300 x 2500 x 40 mm
Motor Power 7.5 HP
Cylinder Stroke 350 mm
Ram Stroke 90 mm
Hydraulic Cylinder Size 95/160 mm (ID/OD)
Number of Cylinders 6
Cycle Time (Speed) 15 Seconds

The Metal Door Press Machine from Makewell Industries delivers precision, reliability, and energy efficiency, ensuring that your production processes are not only effective but also sustainable. Whether you're using the press for electric steam boilers or other industrial applications, our machines provide long-lasting performance with minimal energy consumption.
