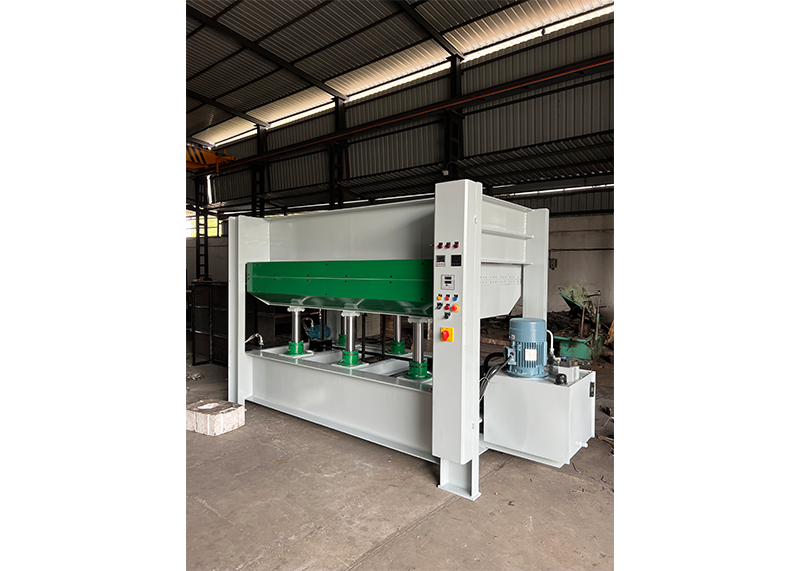

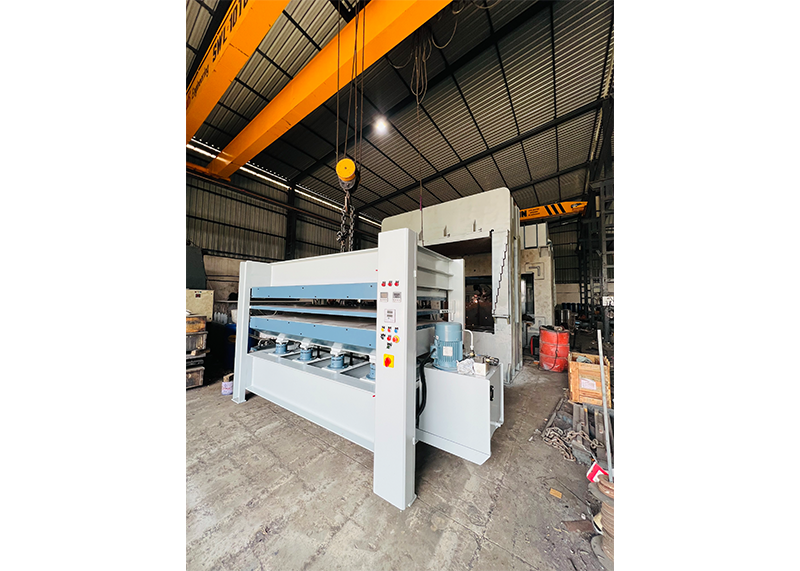

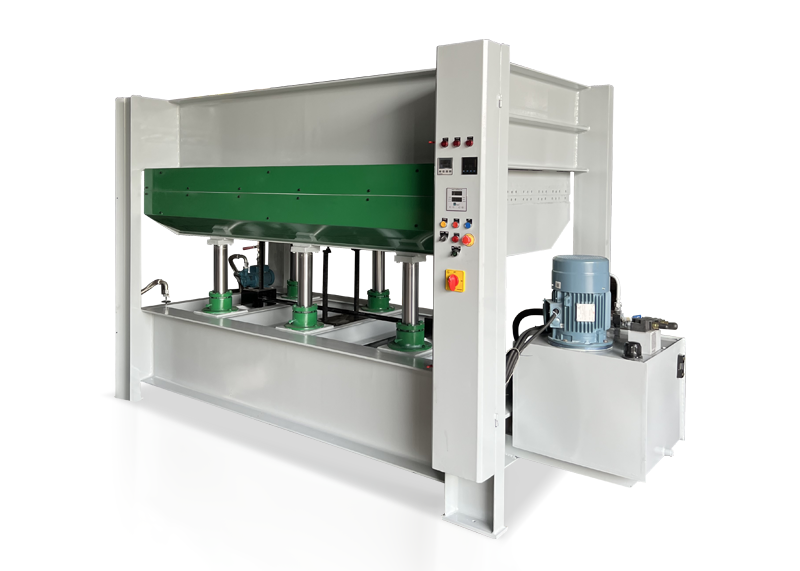

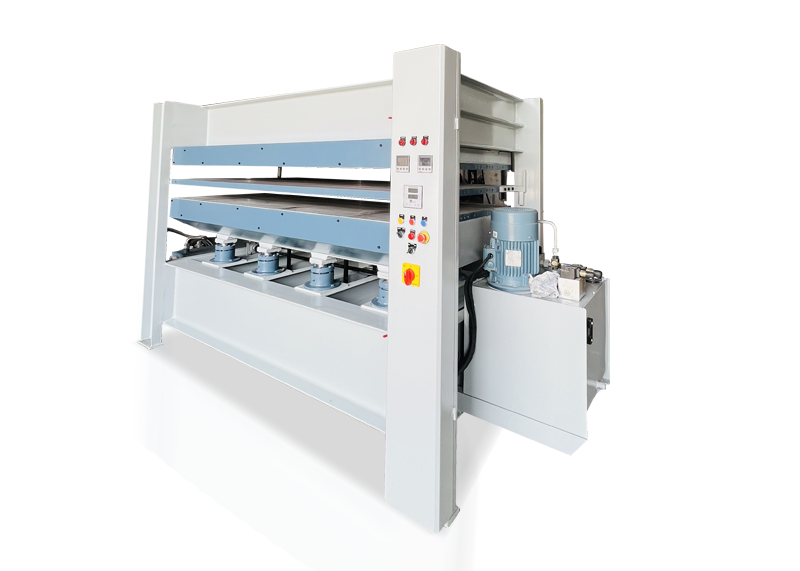

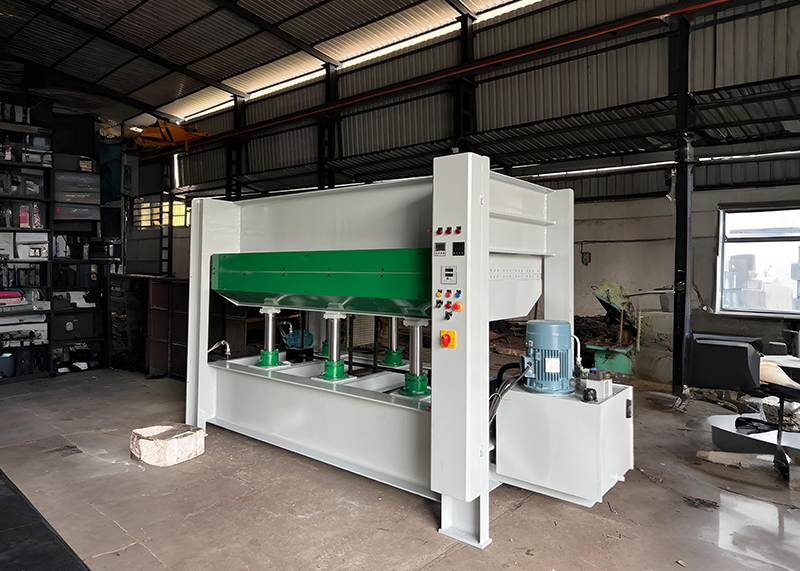

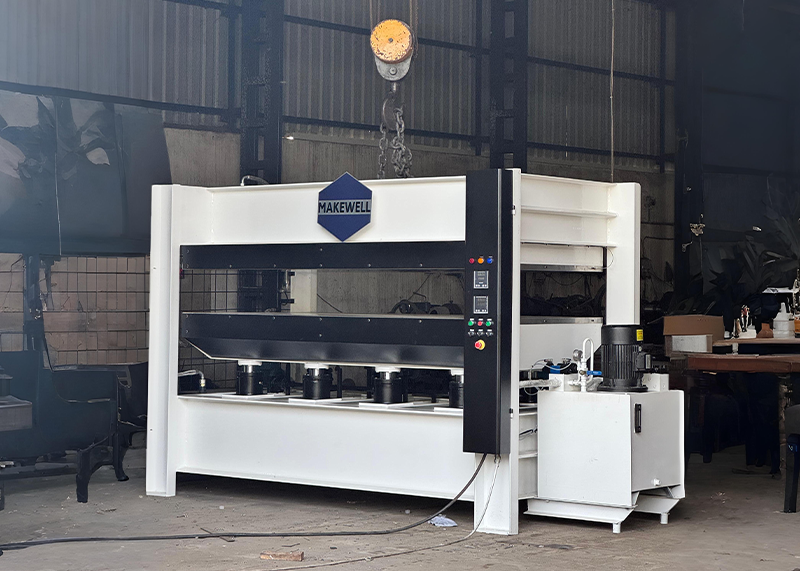

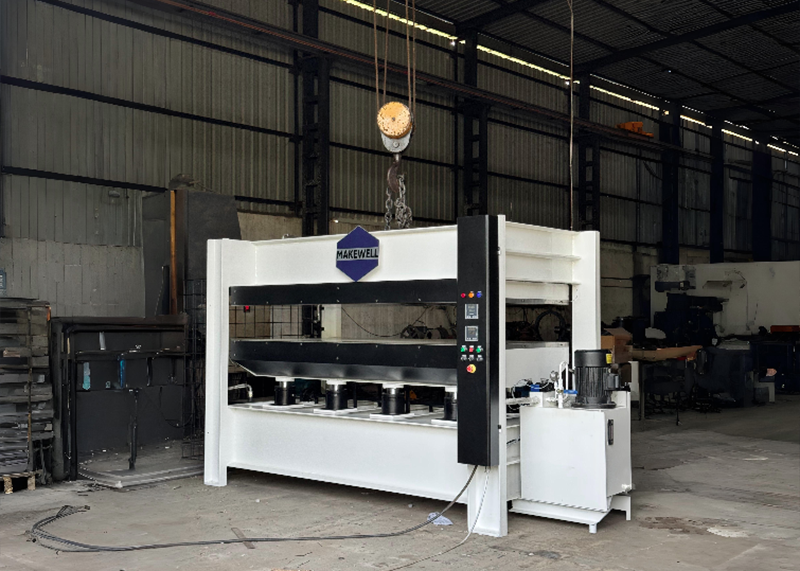

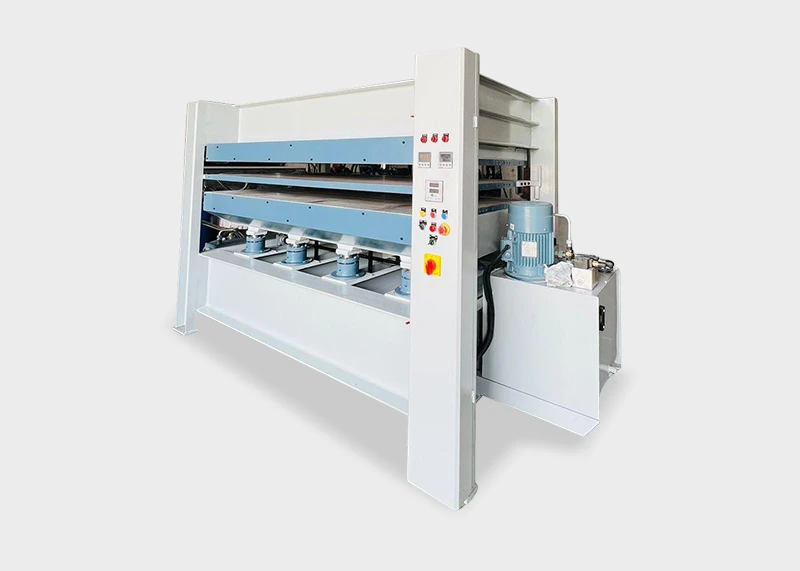

Electric Boiler Hot Press

Electric Boiler Hot Press

Make an Inquiry
Download
  • Description

Prominent & Leading Manufacturer from Ahmedabad, we offer 180 Ton Electric Boiler Hot Press Machine and 320 Ton Electric Boiler Hot Press Machine.

Our scope of items incorporate programmed electric steam evaporator, diesel terminated steam heater and electric steam kettle ( self-loader). Most trend setting innovation joins level switch controls for ceaseless steaming unaffected by voltage varieties. Special weight vessel with worked in consolidate separate for totally dry steam Modular activity permits the perfect measure of steam at no additional force utilization. Separable treated steel components are ensured by indoor regulators.

Features

  • Fabricated Structure From Tested Plates

  • Close Frame For Maximum Rigidity In All Direction

  • Precisely Welded & Machined For Minimum Deflection

  • Equal Thermal Condition In All Daylights

  • Leak Free Hydraulic Cylinders

  • RAMS Hard Chrome Plated & Ground The Micro Finish & Accuracy To Perform Long Lasting Duty

Product (MM)

Capacity (Tons)

Platen (MM)

Specific Pressure

7' x 3'

120

1050 x 2290

12 KG/CM2

8' x 4'

120 /180

1350 x 2600

15  KG/CM2

9 ¼' x 4 ¼'

320

1425 x 2950

18 KG/CM2

10' x 5'

320

3150 x 1650

18  KG/CM2
